The HY new range of gear pumps and motors is the result of the experience and knowledge acquired over many years of engineering and manufacturing that made Hydreco very well known for the performance and the reliability of its gear pumps series.

The HY series is provided with an aluminium alloy housing, two gear wheels supported by sleeve bearings and cast iron flange and cover. Available as pumps and motors, offers high efficiency and can be applied in standard and heavy duty application, thanks to the high reliability and the accuracy of design and production.

The pumps can be supplied as single, or as multiple units with a huge variety of options on flanges, shafts and ports, providing the right setup on each application. Feel free to contact your Hydreco representative to find out more and to get the proper support in your selection.

Already available:

Group 1 and group 2 pumps and motors in multiple configuration

Group 2 low noise version

Coming soon:

Group 2 with cast iron body

Group 3

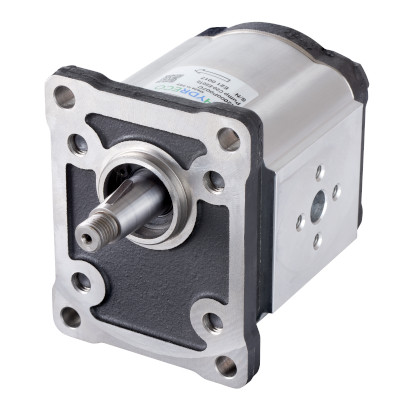

HY2 EUR - Aluminium - Photo

Displacement (HY1+HY2)

from 1 to 31.7 cm³/rev  [from 0.06 to 1.93 in³/rev]

Pressure

Max continuous 260 bar (3770 psi)

Max intermittent 290 bar (4200 psi)

Max peak 310 bar (4500 psi)

Max speed

4000rpm

More info: View technical catalogue
